The specifications given here are for general information only. Please check with an authorized Kia dealer for more precise and more up-to-date information.

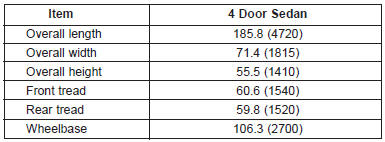

DIMENSIONS Unit: in (mm)
WEIGHTS
Refer to the label describing GVWR & GAWR weights attached to your vehicle. (see page 5-14, Label information)
AIR CONDITIONER

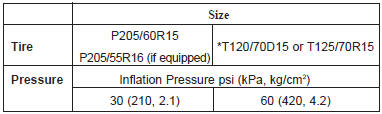

TIRES
*Spare tire (Temporary spare)

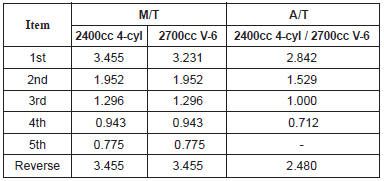

GEAR RATIO
M/T : Manual Transaxle
A/T : Automatic Transaxle

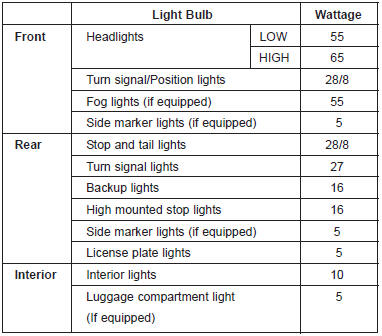

LIGHT BULBS

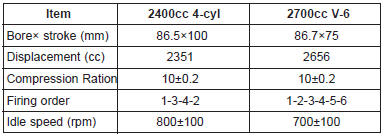

ENGINE

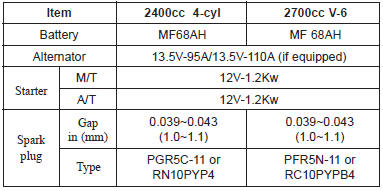

ELECTRICAL SYSTEM

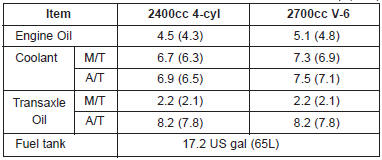

CAPACITIES

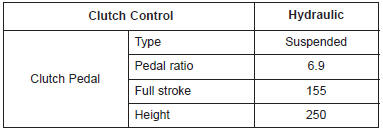

CLUTCH
