Kia Optima: Adjusting the front seatback recliner

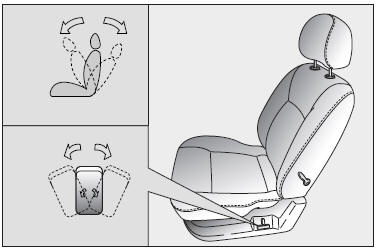

Rotate the upper portion of the control knob forward or backward to recline the seatback to the desired position. Release the control knob and the seatback will lock in position.
Moving the front seat forward and backward
Push the control knob forward or backward to move the seat to the desired position.
Release the knob and the seat will lock in that position.
1. Reclining Control Knob
2. Sliding and Height Adju ...
Adjusting the height of front seat cushion
Front height of front seat cushion
Move the front portion of the control knob up to raise or down to lower the front
part of the seat cushion.
Rear height of front seat cushion
Move the rear ...
