Kia Optima: Audio Remote Control. Schematic Diagrams - Audio - Body Electrical System - Kia Optima TF 2011-2025 Service ManualKia Optima: Audio Remote Control. Schematic Diagrams

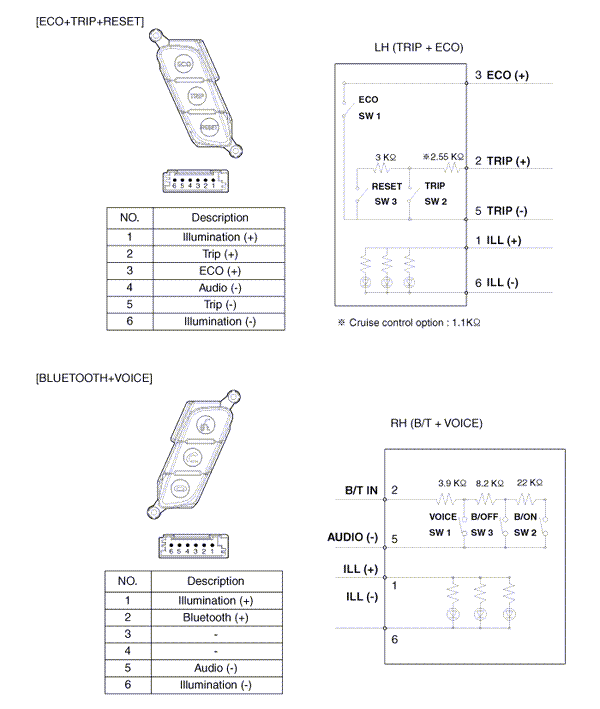

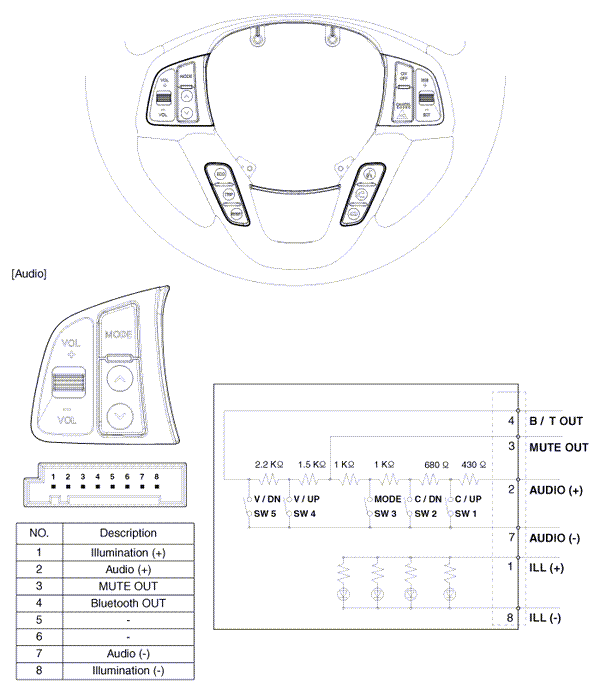

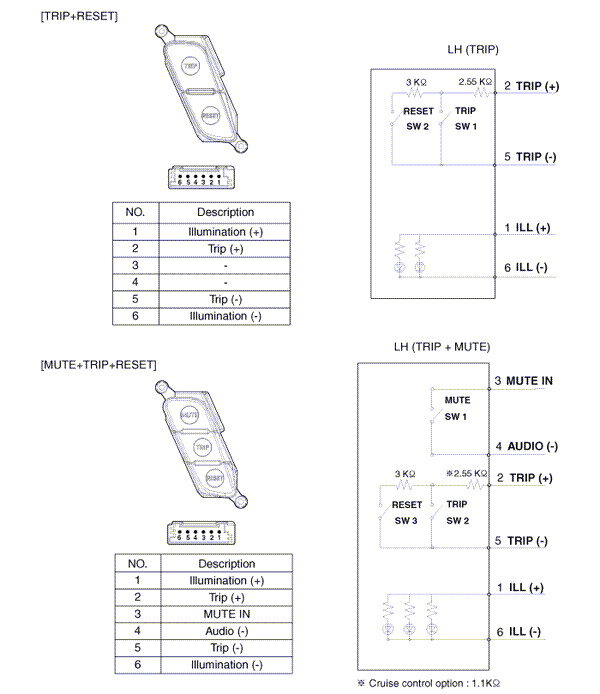

Circuit Diagram


Antenna. Repair procedures
Inspection Glass Antenna Test 1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown. 2. Touch one tester probe to the glass antenna termin ...

Audio Remote Control. Repair procedures
...
