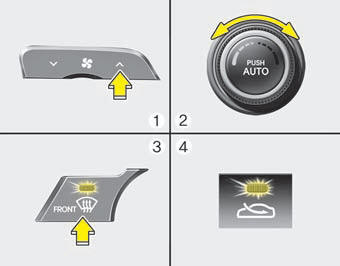

To defog inside windshield
1. Select desired fan speed.
2. Select desired temperature.
3. Press the
defroster button ().
4. The outside
(fresh) air position will be selected automatically.
If the outside (fresh) air position is not selected automatically, adjust the corresponding button manually.

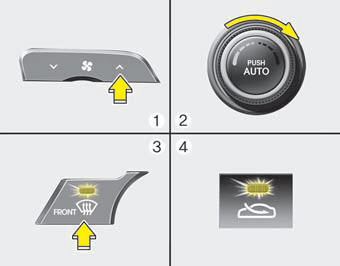

To defrost outside windshield
1. Set the fan speed to the highest position.
2. Set the temperature to the
extreme hot (HI) position.
3. Press the defroster button ().
4. The outside (fresh) air position will be selected automatically.
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the CCV connector.
3.
Measure resistance between the CCV terminal 1 and
2.
4.
...
Injector. Troubleshooting
Signal Waveform
...
Installation
AVN Head Unit
1.
Connect the audio unit connectors
and cables.
2.
Install the AVN head unit.
3.
Install the center fascia upper
panel.
4.
...
