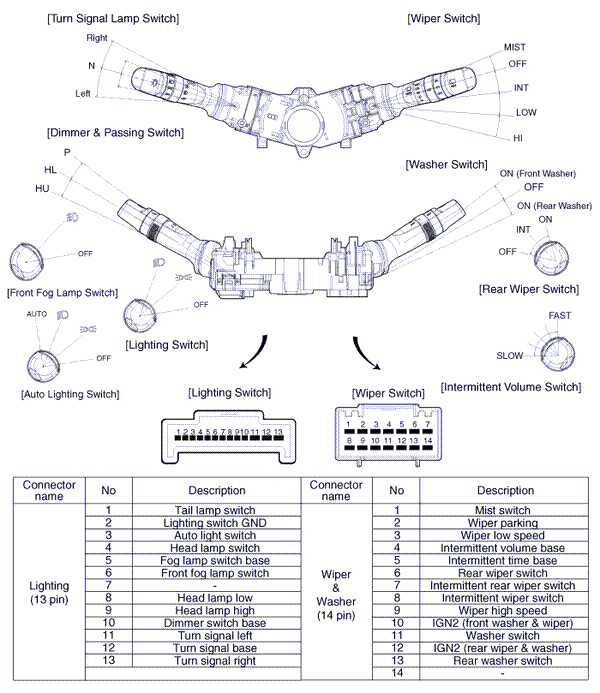

Component(1)

Component(2)

Component(2)

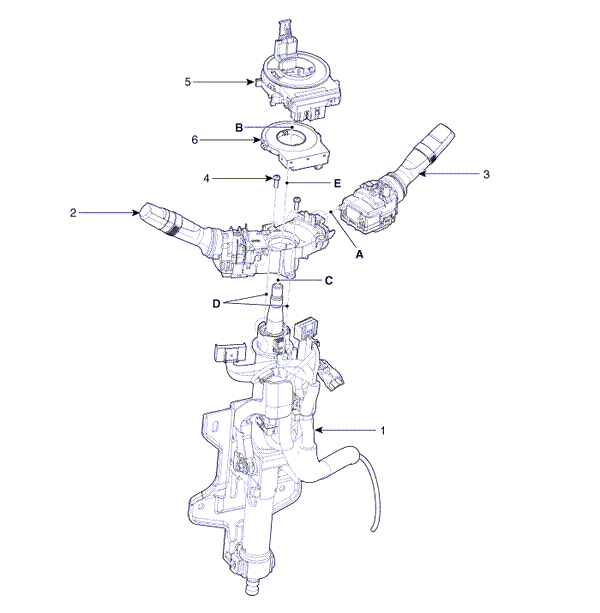

<Installation order : A→B→C→D→E>

<Installation order : A→B→C→D→E>
1. Steering column shaft
2. Lighting switch
3. Wiper and washer switch
4. Screw
5. Clock spring
6. Steering angle sensor


Specifications
Specifications Items Specifications Rated voltage DC 12V Operating temperature range -30°C ~ +80°C (-22 ~ +176°F) ...
