Kia Optima: Control System Composition
Fault Diagnosis
Features a fail-safe mechanism that prevents dangerous situations
from developing in the event of a transaxle failure. The limp home mode engages
if the transaxle malfunctions. In this mode, the transaxle operates at a minimal
functionality level, making it possible for the vehicle to reach a service center.
Fail-Safe: Prevents dangerous situations from developing in the event of a malfunction.
Limp Home: Maintains minimal functionality (*) in the event of a malfunction,
making it possible for the vehicle to reach a service center.
(*) Minimal Functionality: Drive (fixed gear setting), Reverse, and Neutral
Self-diagnosis
TCM is in constant communication with the control system's components (sensors
and solenoids). If an abnormal signal is received for longer than the predefined
duration, TCM recognizes a fault, stores the fault code in memory, and then sends
out a fault signal through the self-diagnosis terminal. Such fault codes are independently
backed up and will not be cleared even if the ignition switch is turned off, the
battery is disconnected, or the TCM connector is disconnected.
Disconnecting a sensor or an actuator connector while the ignition switch
is in the "On" position generates a diagnostic trouble code (DTC) and commits
the code to memory. In such event, disconnecting the battery will not clear
the fault diagnosis memory. The diagnosis tool must be used to clear the
fault diagnosis memory. |
• |
Before removing or installing
any part, read the diagnostic trouble codes and then disconnect
the battery negative (-) terminal. |
• |
Before disconnecting
the cable from battery terminal, turn the ignition switch to OFF.
Removal or connection of the battery cable during engine operation
or while the ignition switch is ON could cause damage to the TCM. |
• |
When checking the generator
for the charging state, do not disconnect the battery '+' terminal
to prevent the ECM from damage due to the voltage. |
• |
When charging the battery
with the external charger, disconnect the vehicle side battery terminals
to prevent damage to the TCM. |
|
Checking Procedure (Self-diagnosis)
• |
When battery voltage
is excessively low, diagnostic trouble codes can not be read. Be
sure to check the battery for voltage and the charging system before
starting the test |
• |
Diagnosis memory is erased
if the battery or the TCM connector is disconnected. Do not disconnect
the battery before the diagnostic trouble codes (DTC) are completely
read and recorded. |
|
Inspection Procedure (Using the GDS)
1. |
Turn OFF the ignition switch.
|
2. |
Connect the GDS to the data link
connector on the lower crash pad. |
3. |
Turn ON the ignition switch.
|
4. |
Use the GDS to check the diagnostic
trouble code. |
5. |
Repair the faulty part from the
diagnosis chart. |
6. |
Erase the diagnostic trouble
code. |
• |
Perform TCM learning
after replacing the automatic transaxle to prevent slow automatic
transaxle response, jerky acceleration and jerky startup. (Refer
to "Automatic transaxle control system (Repair procedures)" in this
group) |
• |
Adding automatic transaxle
fluid. (Refer to "Hydraulic system (Fluid)" in this group) |
• |
After servicing the automatic
transaxle or TCM, clear the diagnostic trouble code (DTC) using
the GDS tool. Diagnostic trouble codes (DTC) cannot be cleared by
disconnecting the battery. |
|

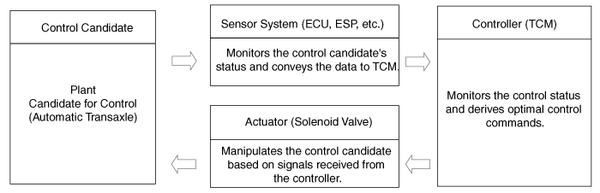

Automatic transaxle system relies on various measurement data to determine the current
control status and extrapolate the necessary compensation values. These values are
used to control the actuat ...
Adjustment
TCM Learning
When shift shock is occurred or parts related with the transaxle are replaced, TCM
learning should be performed.
In the following case, TCM learning is requir ...
