WARNING - Hot liquids
WARNING
Keep cans or bottles out of direct sun light and do not put them in a vehicle that is heated up. It may explode.

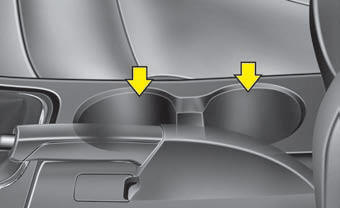

Front Type A

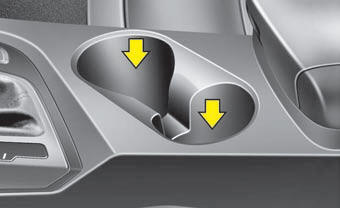

Front Type B
Rear
Cups or small beverage cans may be placed in the cup holders.
