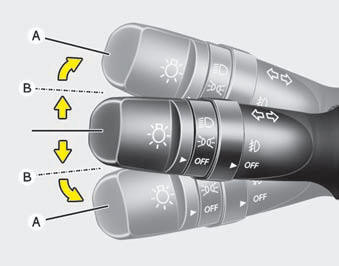

The ignition switch must be on for the turn signals to function. To turn on the turn signals, move the lever up or down (A). The green arrow indicators on the instrument panel indicate which turn signal is operating. They will self-cancel after a turn is completed. If the indicator continues to flash after a turn, manually return the lever to the OFF position.
To signal a lane change, move the turn signal lever slightly and hold it in position (B). The lever will return to the OFF position when released.
If an indicator stays on and does not flash or if it flashes abnormally, one of the turn signal bulbs may be burned out and will require replacement.
✽ NOTICE
If an indicator flash is abnormally quick or slow, a bulb may be burned out or have a poor electrical connection in the circuit.
One-touch triple turn signal
To activate an one-touch triple turn signal move the turn signal lever up or down slightly and then release it. The lane change signals will blink 3 times.
Input Speed Sensor. Troubleshooting
Signal Waveform
Fig 1) Input/Output speed sensor at low speedFig 2) Input/Output speed sensor
at high speed
...
Brake Booster Operating Test
For simple checking of the brake booster operation, carry out the following tests.
1.
Run the engine for one or two
minutes, and then stop it. If the pedal depresses fully the first time ...
Trunk Room Light Bulb Replacement
1. Remove the trunk room lamp cover using flat blade screw driver.
2. After replacement of bulb, install the cover. ...
