Kia Optima: Using iPod®

✽ NOTICE FOR USING THE iPod® DEVICE

• Some iPod® models might not support the communication protocol and the files will not be played. Supported iPod® models: - iPod® Mini
  - iPod® 4th(Photo) ~ 6th(Classic) generation
  - iPod® Nano 1st~4th generation
  - iPod® Touch 1st~2nd generation
• The order of search or playback of songs in the iPod® can be different from the order searched in the audio system.
• If the iPod® disabled due to its own malfunction, reset the iPod®. (Reset: Refer to iPod® manual)
• An iPod® may not operate normally on low battery.
• Some iPod® devices, such as the iPhone, can be connected through the Bluetooth® wireless technology interface. The device must have audio Bluetooth® wireless technology capability (such as for stereo headphone Bluetooth® wireless technology). The device can play, but it will not be controlled by the audio system.

CAUTION IN USING THE iPod® DEVICE

• The Kia iPod® Power Cable is needed in order to operate iPod® with the audio buttons on the audio system.The USB cable provided by Apple may cause malfunction and should not be used for Kia vehicles. ❋ The Kia iPod® Power Cable may be purchased through your Kia Dealership.
• When connecting iPod® with the iPod® Power Cable, insert the connector to the multimedia socket completely. If not inserted completely, communications between iPod® and audio may be interrupted.
• When adjusting the sound effects of the iPod® and the audio system, the sound effects of both devices will overlap and might reduce or distort the quality of the sound.
• Deactivate (turn off) the equalizer function of an iPod® when adjusting the audio system’s volume, and turn off the equalizer of the audio system when using the equalizer of an iPod®.
• When the iPod® cable is connected, the system can be switched to AUX mode even without iPod® device and may cause noise. Disconnect the iPod® cable when you are not using the iPod® device.
• When not using iPod® with car audio, detach the iPod® cable from iPod®. Otherwise, iPod® may remain in accessory mode, and may not work properly.

❋ iPod® is a trademark of Apple Inc.

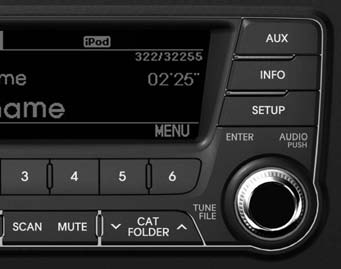

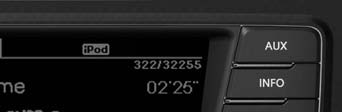

1. AUX Button (iPod®)

If iPod® is connected, it switches to the iPod® mode from the previous mode to play the song files stored in the iPod®. If there is no iPod® connected, then it displays the message "No Media" for 3 seconds and returns to the previous mode.

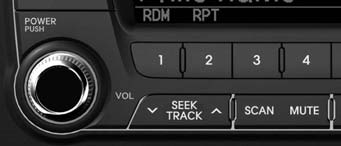

2. 1 Button (RANDOM)

• Press this button for less than 0.8 seconds to shuffle order of all songs in current category. (Song Random)
• Press this button for 0.8 seconds or longer to shuffle order of albums in current category. (Album Random)
• To cancel RANDOM Play, press this button again.

3. 2 Button (REPEAT)

Repeats the song currently played.

4. TRACK Button

• Press the button for less than 0.8 seconds to play from the beginning of the song currently played. Press the button for less than 0.8 seconds and press it again within 1 second to move to and play the previous track.

Press the button for 0.8 seconds or longer to play the song in reverse direction in fast speed.

• Press the button for less than 0.8 seconds to move to the next track.

Press the button for 0.8 seconds or longer to play the song in forward direction in fast speed.

5. SCAN Button

Plays each song in the iPod® device for 10 seconds.

To cancel SCAN Play, press this button again.

6. 6 Button (MENU)

Moves to the upper category from currently played category of the iPod®.

To move to (play) the category (song) displayed, press TUNE knob.

You will be able to search through the lower category of the selected category. The standard order of iPod®’s category is SONGS ➟ ALBUMS ➟ ARTISTS ➟ GENRES ➟ iPod®

7. INFO Button

Displays the information of the file currently played in the order of TITLE ➟ ARTIST ➟ ALBUM ➟ NORMAL DISPLAY ➟ TITLE... (Displays no information if the file has no song information.)

8. TUNE Knob & ENTER Button

When you rotate the knob clockwise, it will display the songs (category) ahead of the song currently played (category in the same level).

Also, when you rotate the knob counterclockwise, it will display the songs (category) before the song currently played (category in the same level).

To listen to the song displayed in the song category, press the button to skip to and play the selected song.

Pressing the button changes the BASS, MIDDLE, TREBLE, FADER and BALANCE TUNE mode. The mode selected is shown on the display. After selecting each mode, rotate the Audio control knob clockwise or counterclockwise.
